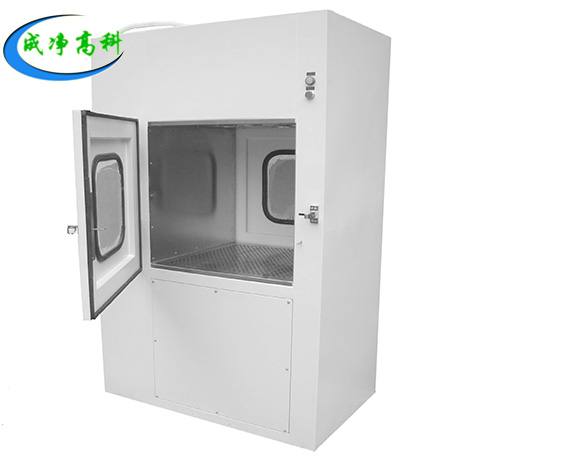

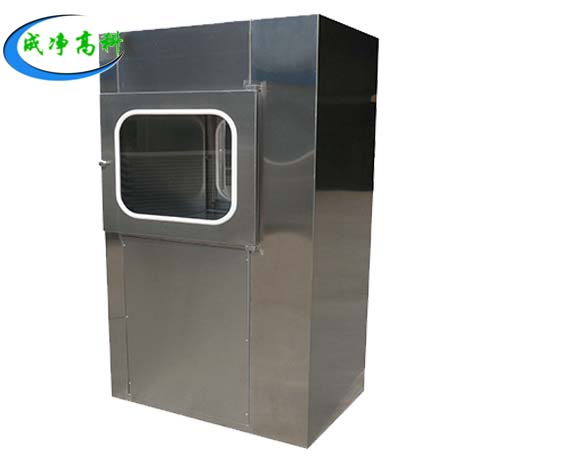

The wind drench type transmission Windows
產品介紹Product introduction
風淋室傳遞窗是具有閘門與門鎖的雙重作用，被傳遞的物品必須經過風淋后才能進入潔凈室，所以能有效地防止傳遞的物品將灰塵或細菌帶入潔凈室。
Air shower transmission Windows is a gate lock and the dualrole, is passed Items must be after the cleanroom can enter after, so can effectively To prevent transmission of the item will dust or bacteria into the clean room.
構成材料：Constitute the materials
●外框：不銹鋼或冷板噴塑處理
●Outer frame of cooling-plate pensu processing: stainless steel or
●內膽：不銹鋼
●Tank: stainless steel
●采用粗效、高效兩級過濾系統
●Using rough effect, efficient filter system
●風機：低振動、低噪音進口或國產風機
●Fan: low vibration, low noise, imported or domestically fan
型號尺寸及其他參數
Standard specification
|
規格型號Specifications |
CJ-J12-1 |
CJ-J12-2 |
|
外形尺寸（L×W×H）mm Shape dimension |
950×680×1550 |
1120×840×1680 |
|
內部尺寸（L×W×H）mm Internal dimensions |
600×600×600 |
800×800×800 |
|
噴嘴數量及風速Nozzle number and speed |
4、18~22 m/s |
5、18~22 m/s |
|
電源及功率Power supply and power |
380V、50HZ、0.75KW |
380V、50HZ、1.1KW |
*可根據用戶要求定制不同規格型號的風淋傳遞窗
According to the requirements of users can customize different specifications and types of the transfer window
