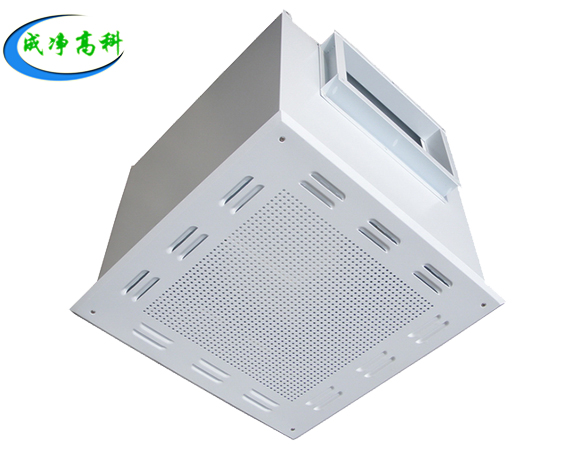

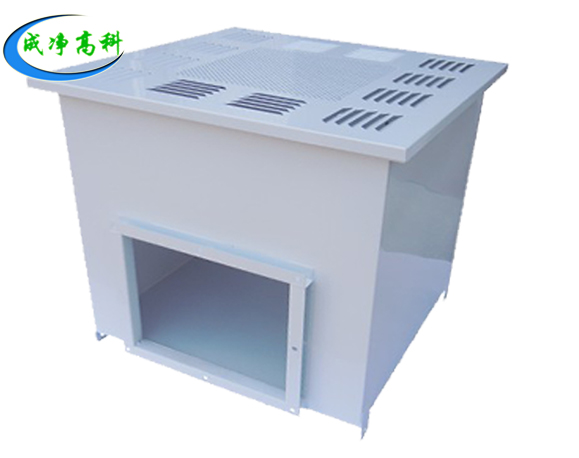

高效送風口

Efficient air diffuser

特點：Features

●外形美觀、結構簡單

●帶調節閥可調節風量

●適用于有隔板高效空氣過濾器

●Appearance, simple structure

●With adjustable air regulator

●Applicable to hepa filter

構成材料及運行條件

Materials and operating conditions

●框材：冷扎鋼板噴塑

●External frane：Lengzha steel spray

●風量調節：手動調節閥

●Operation: manual regulator

●過濾器：有隔板高效空氣過濾器

●Hepa filter: air filter

●使用溫度、濕度：80℃、80%以內

●Use the highest temperature, humidity：80℃、80%

型號尺寸及其他參數(Standard specification)

側面進風 Lateral into wind	頂部進風 Top into the wind	外形尺寸 Shape dimension L×W×H	過濾器尺寸 Filter size L×W×H	風量air (m3/h)	進風官尺寸 (mm) Into the official size A×B	風管連接 Duct connection C×D	裝配尺寸 Assembly size T×S×R×G	吊環間距 Rings spacing
CJ-FK-C1	CJ-FK-C1R	370×370×530	320×320×220	500	200×200	250×250	438×438×294×294	344×344
CJ-FK-C2	CJ-FK-C2R	534×534×530	484×484×220	1000	200×200	370×250	588×588×294×294	508×508
CJ-FK-C3	CJ-FK-C3R	660×660×460	610×610×150	1000	320×250	370×300	716×716×358×358	634×634
CJ-FK-C4	CJ-FK-C4R	680×680×530	630×630×220	1600	320×250	370×300	736×736×368×368	654×654
