袋式空氣過濾器

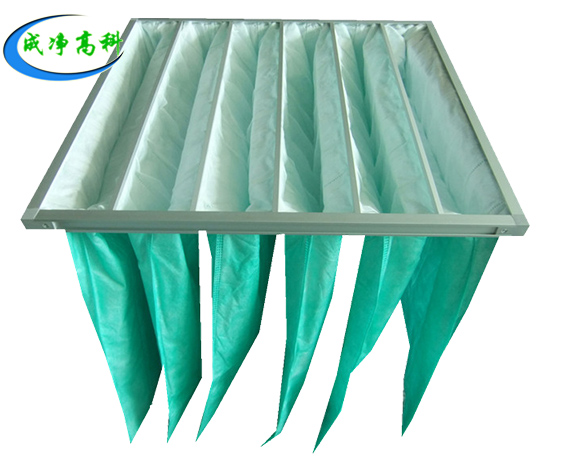

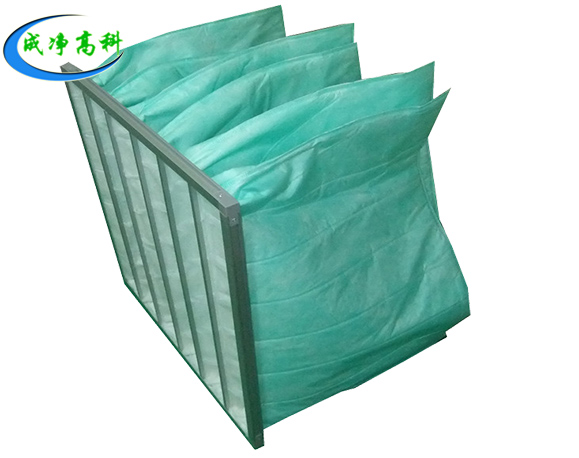

F6中效袋式空氣過濾器

Air filter bag in effect

特點Features

●可重復使用多次

●阻力小、風量大

●廣泛運用于空調系統的中級過濾

●Adopts reusable times

●Responding to small resistance, air

●Widely used in air conditioning system of intermediate filtration

構成材料及運行條件

Materials and operating conditions

●框材：鋁合金或鍍鋅板外框

●External frane：Aluminum alloy steel or frame

●濾料材質：新型復合無紡布

●Filter material: new composite nonwoven fabric

●濾料顏色：F5(白色)45%（淺黃色）、F6(綠色)65%（桔紅色）、

F7(粉紅色)85%（紫色）、F8(淺黃色)95%（深黃色）

●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),

F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)

●密封條：醋酸乙酯

●Gasket：EVA

●使用溫度、濕度：80℃、80%以內

●Use the highest temperature, humidity：80℃、80%

型號尺寸及其他參數

Standard specification

型號 model	外形尺寸 Outside Dimensions (mm)	額定風量 Rated air flow (m3/h)	初阻力 Initial resistance(Pa)	效率（級別） Efficiency (class)	濾料顏色 Liao color	袋數 pockets
CJ-M1-B1	495×295×500mm 20″×12″×20″	1000m3/h	50Pa F5 55Pa F6 60Pa F7 65Pa F8	40-50% F5 60-70% F6 75-85% F7 85-95% F8 （比色法） colorimetric	白色F5 White 綠色F6 Green 粉紅F7 pink 淺黃F8 yellow	5
CJ-M1-B2	495×495×500mm 20″×20″×20″	1800m³/h				5
CJ-M1-B3	595×295×500mm 24″×12″×20″	1300m³/h				6
CJ-M1-B4	595×495×500mm 24″×20″×20″	2200m³/h				6
CJ-M1-B5	595×595×500mm 24″×24″×20″	2600m³/h				8
CJ-M1-B6	495×295×600mm 20″×12″×24″	1200m3/h				5
CJ-M1-B7	495×495×600mm 20″×20″×24″	2200m³/h				5
CJ-M1-B8	595×295×600mm 24″×12″×24″	1600m³/h				6
CJ-M1-B9	595×495×600mm 24″×20″×24″	2700m³/h				6
CJ-M1-B10	24″×24″×24″	3200m³/h				8
