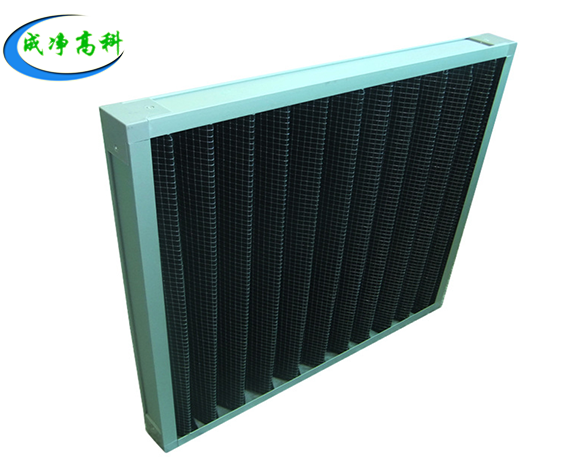

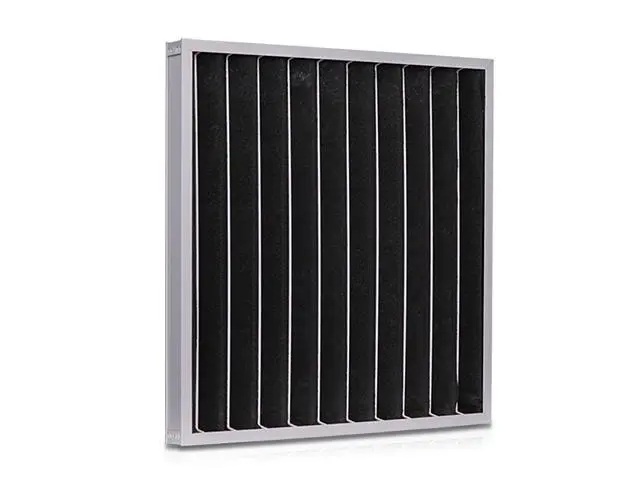

Carbon coarse efficiency air filter
特點 Features
●該過濾器所使用的活性炭濾材,表面吸附能力強,能有效去除氣味
●適用于各種空調通風系統,在空調通風系統中處理氣味及空氣污染等效果特佳
●This filter USES activated carbon filter material,Surface adsorption ability is strong, can effectively remove odour
●Responding to applicable to all kinds of air conditioning and ventilation system in air conditioning.The wind system of processing and air pollution, etc
型號尺寸及其他參數
Standard specification
|
型號 model |
外形尺寸 Outside Dimensions (mm) |
額定風量 Rated air flow (m3/h) |
初阻力 Initial resistance (Pa) |
效率（級別） Efficiency(class) |
濾料型號 Model of filter media |
|
CJ-HX-S1 |
295×295×46mm 12″×12″×13/4″ |
800m3/h |
40Pa |
≥80% (吸附效率) Adsorption efficiency |
黑色帶活性炭粉過濾棉 Black belt activated carbon filter cotton powder 活性炭顆粒 Activated carbon particles |
|
CJ-HX-S1 |
495×295×46mm 20″×12″×13/4″ |
1300m3/h |
|||
|
CJ-HX-S1 |
495×495×46mm 20″×20″×13/4″ |
2200m3/h |
|||
|
CJ-HX-S1 |
595×295×46mm 24″×12″×13/4″ |
1600m3/h |
|||
|
CJ-HX-S1 |
595×495×46mm 24″×20″×13/4″ |
2700m3/h |
|||
|
CJ-HX-S1 |
595×595×46mm 24″×24″×13/4″ |
3200m3/h |
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
